What differentiates QM-Fit from other Mitutoyo Vision Measuring Machines (VMMs)?

What differentiates QM-Fit from other Mitutoyo VMMs?

As industries demand tighter tolerances and higher quality standards, the need for accurate measurement solutions continues to grow—especially for manufacturers handling thin, fragile, or small workpieces requiring non-contact measurement, using Vision Measuring Machines (VMMs).

However, not every production floor requires the advanced capabilities of VMMs, such as the QV Apex Pro and QV Active series, which are globally recognised for their high-speed, high-accuracy, and high-acceleration measurements. For many operations, these capabilities may exceed actual requirements. Additionally, the large space requirements of these machines can present challenges for workshops with limited spaces.

To address this gap, Mitutoyo developed QM-Fit — a compact Vision Measuring Machine that bridges manual inspection and advanced vision measurement. The following section explains how it differs from other VMMs and highlights the key technical features that set it apart for modern production needs.

Accessible Functionality

QM-Fit delivers fast inspection & measuring time without compromising measurement accuracy with its ease-of-use and intuitive touchscreen, allowing manufacturers to achieve high-accuracy results without a steep learning curve, making QM-Fit the ideal “fit” for teams that require reliable data quickly.

Learn more about how QM-Fit simplifies operations here!

Faster Measurement Time

Unlike the larger VMMs that require specialised programming and extensive training to operate, QM-Fit adopts a simpler and more accessible approach. Measurements can be performed immediately by simply placing the workpiece on the stage, enabling fast and repeatable inspections with minimal setup, streamlining inspection workflows while maintaining accuracy and repeatability. It is also suitable for small part measurement, ensuring that even the tiniest components, from electronic parts to micro-mechanical devices, are measured with exceptional precision.

Intuitive Touch Screen

Designed with usability in mind, QM-Fit also features an intuitive touchscreen interface that simplifies operation for users of all experience levels. Its guided display function provides instructions, assisting operators through each stage of the measurement process. Additional capabilities—such as reference axis setting and coordinate difference measurement for precise alignment with projectors or other equipment; automatic result display; and instant pass/fail judgement based on predefined design values—further enhance efficiency and accuracy.

Smart Software - Advanced, Intuitive Operation

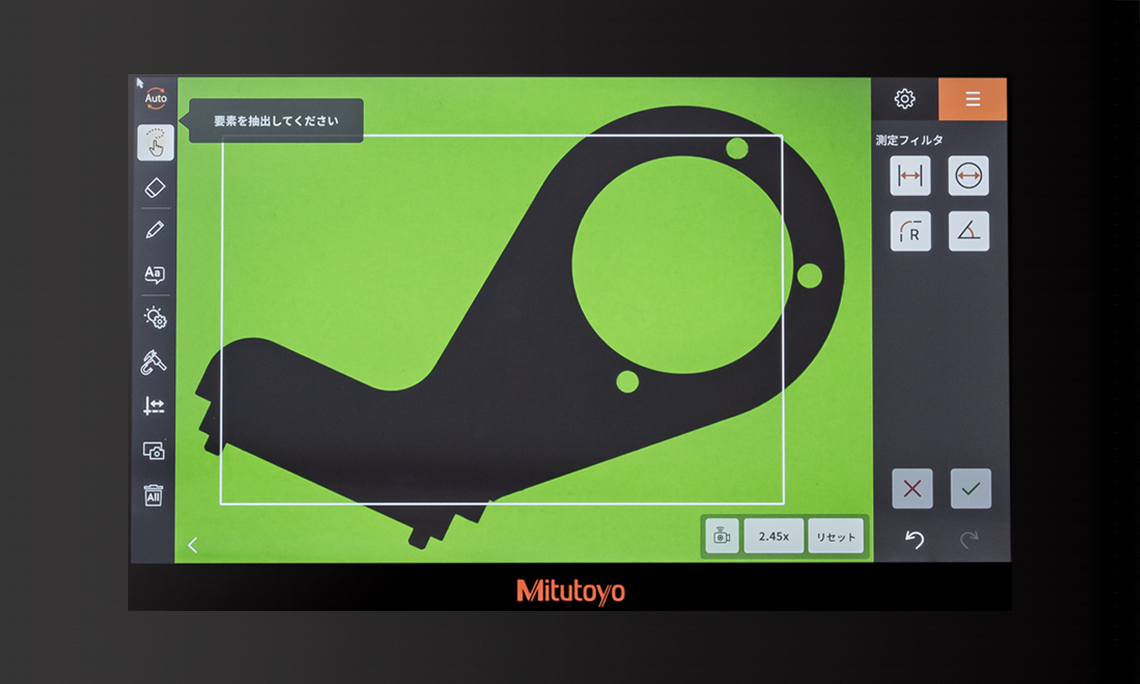

QM-Fit is equipped with advanced software capabilities integrated into its intuitive touchscreen panel, enabling operators to quickly detect, manipulate, and measure workpieces with speed and accuracy.

With automatic element detection, QM-Fit can identify multiple features simultaneously, and automatically recognise circles, taps, and lines with a single tap. The marker function allows operators to generate measurement elements by tracing the outline of a feature or filling in the desired area. The calliper snap function acts like a digital ruler, automatically snapping to edges or circles. Unlike conventional VMMs, QM-Fit eliminates the need for repeated crosshair alignment when brought into proximity, significantly reducing measurement time and operator workload while ensuring precise measurements with minimal effort.

View more of QM-Fit’s smart features here!

Compact Design - Space Saving Ergonomics

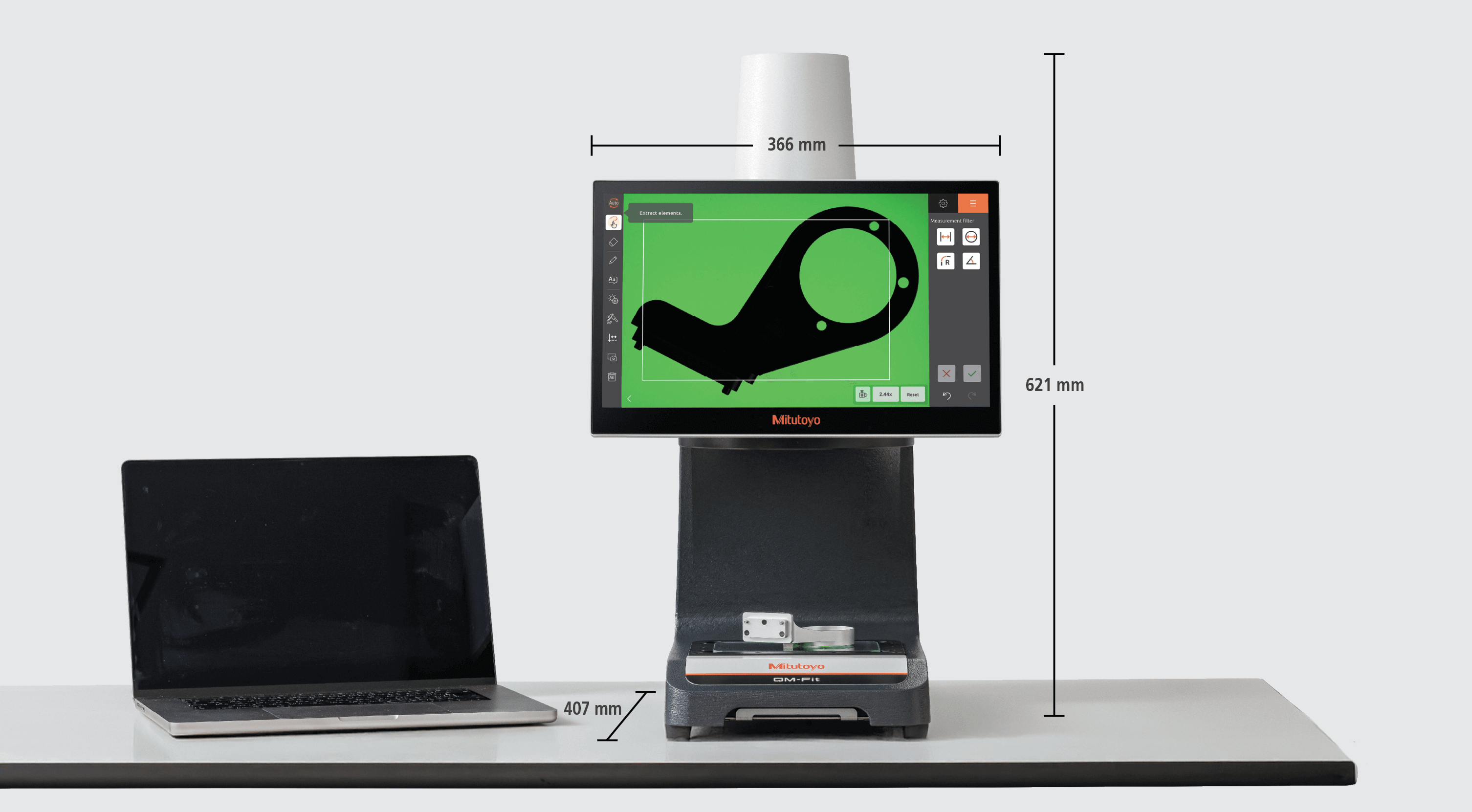

Many high-end VMMs require dedicated workstations or significant floor space. In contrast, QM-Fit is designed with a compact, integrated body. By merging the machine, controller, and monitor into a streamlined unit, QM-Fit can be placed comfortably into smaller workspaces and crowded production floors where every square inch matters.

Discover how QM-Fit’s compact design improves workspace efficiency here!

Long Focal Depth Lens - No Blurring,
Even With High Surfaces

QM-Fit utilises a long focal depth lens that clearly displays bulky parts with a height up to 36mm with deep depressions and rises. This extremely large depth of focus eliminates the need to adjust the focus for individual parts with different heights, allowing for efficient measurement.

Explore QM-Fit’s uncompromised optical performance here!

Supporting Your Global Vision

Choosing between QM-Fit and other Vision Measuring Machines depends on your specific production needs, from advanced nanotechnology-level development to efficient daily quality inspections. Regardless of choice, Mitutoyo is committed to providing the necessary maintenance to ensure reliable performance and long-term operational confidence. With a presence in over 40 countries and more than 1,000 technical experts worldwide, Mitutoyo delivers strong local support backed by global expertise.

Visit our website to explore our full range of Vision Measuring Systems, Coordinate Measuring Machines (CMM), and other measurement solutions to see how we can optimise your workflow. Contact us now to experience QM-Fit in action!
