QuantuMike vs. Standard Micrometers: When Precision and Speed Converge

QuantuMike vs. Standard Micrometers: When Precision and Speed Converge

For decades, micrometers have been the trusted handheld tools for delivering precise measurements in close tolerances. However, as production cycles shorten and tolerance requirements become increasingly stringent, micrometers must adapt to keep pace with modern manufacturing demands

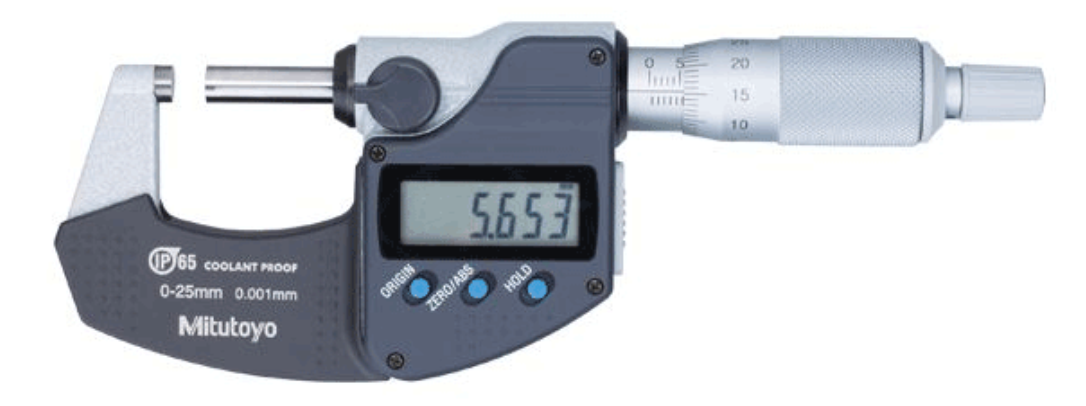

Standard Micrometer: A Timeless Workhorse

A standard micrometer uses a 0.5mm screw lead to translate the rotation of the thimble into linear movement, making it ideal for general-purpose measurements. However, moving the spindle a significant distance requires many rotations, making each measurement time-consuming. In high-volume environments, this impacts overall workflow efficiency.

QuantuMike: More Than Just a Micrometer

Unlike a standard micrometer with a 0.5 mm screw lead, QuantuMike is equipped with a thimble that moves the spindle 2.0 mm in a single rotation, achieving 4 times faster movement than conventional micrometers. QuantuMike is ideal for applications that require measuring multiple dimensions rapidly, enabling more efficient measurements and increased throughput.

QuantuMike is also equipped with multiple features that set it apart from standard micrometer, including:

Download QuantuMike Brochure

Faster Measurement Time

Due to its faster movement in a single rotation, QuantuMike reduces measurement time by 60% for work-piece approach and release while maintaining high accuracy with a maximum permissible error of just ±1 μm.

Calibration Schedule Alert Function

Calibration warning and calibration date can be set. A warning is displayed when the calibration time approaches and on the calibration date to prevent skipped calibration, ensuring proper management of the Digimatic gages.

Tolerance judgment & Calculation function

QuantuMike determines whether the measurement value is within the upper and lower limits of tolerance and displays a tolerance judgment mark, which the user can judge pass/fail at a glance.

QuantuMike is also equipped with calculation functions to calculate correction values for a processing machine. This eliminates the potential inconvenience of calculations and reduces human errors, such as confusing plus and minus values when entering correction values.

Bidirectional serial communication

This feature enables easy setting and management of QuantuMike, dramatically improving work efficiency by connecting with a PC or mobile device.

Note: An optional cable and measurement data input unit are required for bidirectional serial communication

When Does Precision Matter Most?

This ultimately depends on your specific requirements:

1. Throughput vs. Occasional Use: For high-production environments, the 2.0mm-per-rotation feed of QuantuMike will save hours of labour time, resulting in higher throughput. For occasional toolroom checks, a standard micrometer remains a cost-effective tool.

2. Data Integrity: QuantuMike integrates seamlessly into Digimatic output systems, allowing you to export measurements directly to a PC. This eliminates "human error" in transcription - a vital factor when precision is a legal or contractual requirement.

3. Environmental Resistance: QuantuMike features an IP65 level of protection, making it highly resistant to the coolants and dust found in heavy-duty machining environments.

The Mitutoyo Standard

When you choose Mitutoyo, you are investing in a legacy that began in 1934. We don't just manufacture precision measurement instruments; we provide the infrastructure for global precision to ensure that your equipment operates at peak performance long after the initial purchase.

As industries shift toward automation and nanotechnology, our measurement solutions provide the data-driven foundation you need to improve productivity and maintain the highest quality standards.

Experience the Future of High-Speed Metrology

QuantuMike isn't just a micrometer; it’s a productivity tool designed for high measurement speed, reliability, and accuracy.

Contact our team of experts today for a consultation or a demonstration now!
